HHT2 Single-phase Solid Voltage Regulator

China HHT2 Single-phase Solid Voltage Regulator supplier

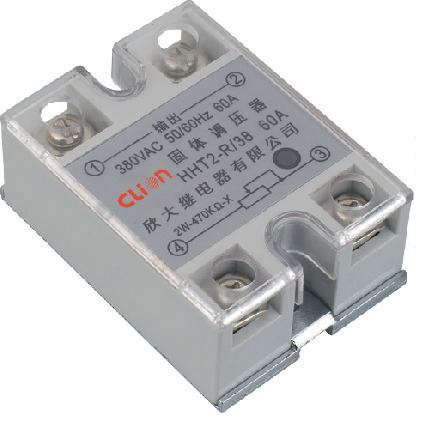

Large Image :  HHT2 Single-phase Solid Voltage Regulator

Product Details:

Place of Origin: China
Brand Name: Clion
Certification: CE
Model Number: HHT2 Single-phase Solid Voltage Regulator
Contact Now
Detailed Product Description

Part NO.
HHT2-R/22、38 60-80A
HHT2-U/22 10-40A

SSR-VA
SSR-VA
Description
Single-phase Solid Voltage Regulator
Single-phase Solid Voltage Regulator
Control mode
2W470-560KΩ potentiometer
0-5VDC or 0-10VDC
Load Voltage
22:220VAC,38:380VAC
220VAC
Voltage-regulation Scope
22:10-250VAC 38:10-440VAC
10-250VAC
Isolation Voltage
Not isolated
Passive type; Full isolation
Off-state Leakage Current
≤10mA
≤10mA
Output Current
60A,80A
10A,15A,20A,25A,30A,40A
Transient Voltage
22:600VAC,38:900VAC
600VAC
On-state Voltage Drop
<3VAC
<20VAC
Dielectrics Voltage-resistance
≥2500VAC
≥2500VAC
Insulation Resistance
500MΩ 500VDC testing
500MΩ 500VDC testing
Ambient temperature
-30~80℃
-30~80℃
Dimensions
63L*45W*26H
63L*45W*26H
Indicated Methods
LED
LED
Installation
Screw fixing
Screw fixing
Packing
Inner Box (PCS)
1PCS/small box,10pcs/paper box
1PCS/small box,10pcs/paper box
Outer CTN (PCS)
100
100
CTN Size
380*215*175mm
380*215*175mm
Weight
145g/pcs, G.W:15.5kg N.W:14.5kg
20A≤135g/PCS G.W:14.5kg N.W:13.5kg
40A≤145g/PCS G.W:15.5kg N.W:14.6kg
Radiator
HH062,HH063
HH060,HH061
Remarks
1.Load current>10A ,a radiator is necessary,Load current>80A, fan is necessary.
2.When controlling inductive load, a varistor is necessary and its voltage could be 1.6-1.9 times of load voltage
