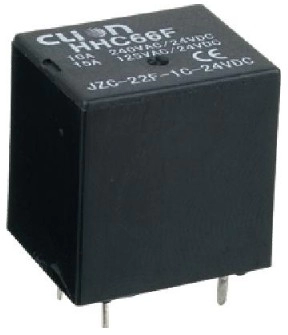

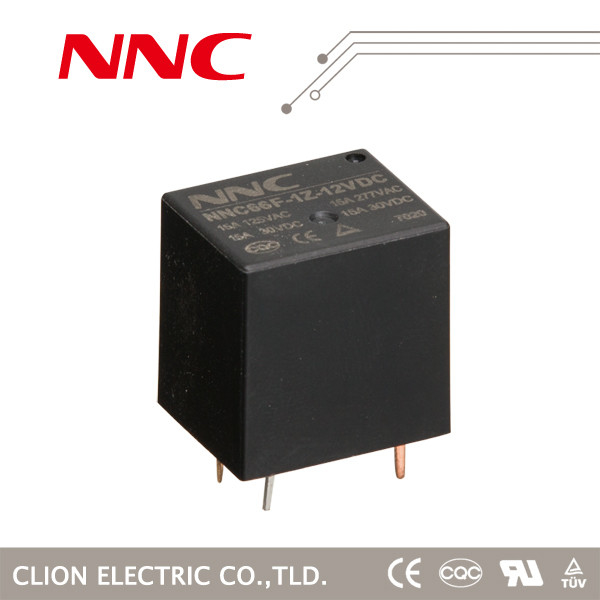

PCB Relay HHC66F(JZC-22F)

China PCB Relay HHC66F(JZC-22F) supplier
PCB Relay HHC66F(JZC-22F) supplier PCB Relay HHC66F(JZC-22F) supplier

Large Image :  PCB Relay HHC66F(JZC-22F)

Product Details:

Place of Origin: China
Brand Name: clion
Certification: CE, CQC,UL
Model Number: HHC66F(JZC-22F)

Payment & Shipping Terms:

Minimum Order Quantity: 10000
Price: Get Latest Price
Packaging Details: Export packing
Delivery Time: 15 days
Payment Terms: TT
Supply Ability: 500,000 pieces
Port: Shanghai&Ningbo
Contact Now
Detailed Product Description
Theory: Electromagnetic Relay Usage: PCB
Size: Miniature Protect Feature: Sealed
Contact Load: Low Power
